Refinery

Aluminum vs. Polyethylene Pump Guards

RMF



We have been recently changing out a lot of pump guards that did not hold up to the harsh factory environments that they were expected handle. These plastic guards are being exchanged for more durable aluminum guards.



Here’s what they found:

  • The plastic can’t take the heat of the high temperature pumps. The guards get soft and warp.





















  • The aluminum guards will not rust, are highly resistant to weathering and are corrosion resistant to many acids.



  • Aluminum can be easier modified and repaired than plastic.



  • The plastic guards can only be removed a few times. After that, they become warped and difficult to fit back around the pump and often need to be replaced.



  • When supplied with a clear section for inspection, these areas quickly become clouded and useless. They have to be removed to inspect the unit opening a gap to a running pump.





















  • Our upper ventilation slots also act as inspection ports so you can easily monitor the pump without touching the unit or removing a clouded cover.

























  • We’ve also added lower inspection holes to check the base of the pump for leaks, fallen items and belt issues.























  • They have no ventilation or limited ventilation! Our aluminum guards have superior ventilation, increasing the lifespan of your high-temp pumps.



  • Many of these plastic guards come as kits. Your employees could spend may hours cutting and modifying one to get it to fit correctly. Our guards come custom built ready to install on your pump!























Your people stay in the field = more dollars in your pocket.





Contact Riggs Machine about our durable, long lasting, custom aluminum pump guards.



Riggs Machine & Fabricating – Serving industry in KY, OH and WV for over 45 years!

Large Pipe Temporary Strainers (Witch Hats)

RMF
Large Pipe Strainers - Chris for Scale
Large Pipe Strainers – Chris for Scale



These temporary cone and basket strainers (the models with the flat bottoms) are impressive. Used during start-ups and repairs, they will protect pumps, piping and other parts of the system from nuts, bolts and other stray debris.



Various Styles of Temporary Strainers
Various Styles of Temporary Strainers



These are made of 304 stainless steel and custom designed. Riggs Machine can provide them in a variety of materials, styles and sizes.



Witch Hat Strainer - CU

Temporary Strainers on Pallet
Temporary Strainers on Pallet























They might seem extreme, but when you realize what they can save, they are worth every dollar!



Riggs Machine & Fabricating – Serving industry in KY, OH and WV for over 45 years!

Mobile Safety Barrier

RMF

Traffic Cone

“When a Simple (traffic) Cone Won’t Do”



Movable Safety Barrier - 3D Render



There are several solutions to protecting workers and areas vulnerable to hazards like pedestrian and industrial traffic.

Some companies throw out a few cones, maybe even adding a flag or two for visibility. Then there’s the flimsy plastic folding barriers you might have seen around an out-of-service restroom at the mall.

But these solutions are not suitable for industrial environments. They don’t offer any real protection. They’re just one step up from wishful thinking.

Riggs Machine would like to suggest a better solution: the Mobile Safety Barrier.

This item protects the area around workers while in underground accesses such as manholes and maintenance openings or above ground on ladders.



Movable Safety Barrier - Man in Barrier



Highly Visible – can be see by those walking around the area and in vehicles and forklifts.



Movable Safety Barrier - Side View



Due to its sturdy design, it will not fold or buckle in high winds or bad weather. Can be bumped and still remain in position. It’s solid metal frame can withstand the harsh plant environment. Unlike plastic units, it can be painted any color or modified if necessary.



Movable Safety Barrier - Caster



The Mobile Safety Barrier positions easily on heavy duty casters and can be loaded on a flatbed for quick offsite setup.



This convenient, sturdy, mobile, highly visible unit increases safety in your facility.



Riggs Machine & Fabricating – Serving industry in KY, OH and WV for over 45 years!



Preparing for the Outage

RMF

Preparing for an outage can be almost as stressful as the actual event. Gathering drawings, getting materials ready, prepping vendors, suppliers and employees. Trying your best not to overlook any details.



construction workers
Photo by Jess Lis from Freeimages
blueprints
Photo by Fira Anuar from Freeimages

















But often it’s not the big ticket items that slow or even stop production, it could be something as simple as missing shims to get a new pump to the correct height, a missing blind to close off a pipe section before adding a new unit, keys for new shafts or custom bolts you swore you ordered and now will take a week to machine.



bleeder blind pump shim

















I’ve seen all of these, and more. The excuses are varied, who was responsible for ordering the items, I thought they were included with the quote, the existing ones should have worked with the new unit, and even – I just forgot!



frustrated man
Photo by Marabu from ABSFreePIC.com

















So how best to avoid these situations?

– Get current manufacturer drawings for new equipment. Trying to fit a new pump on an old base never works out. Plan for modifications and additions. Make sure everyone has the same version prints. Don’t rely on old drawings someone pulled from the file or had stored on their computer. Verify you are on the same version. If you have to, create a new master set and pass them out to everyone involved.



parts and prints















– Next, and sometimes more importantly, is having a local machine shop who can respond timely, ready for such emergencies. This might require several shops of varied disciplines; one for burn outs, one for custom bolts or nuts, one for blinds and piping…



weld shop

lathes in machine shop

















– You might want to get the shops involved early in the process, rather than late one evening when you realize something has gone wrong. They may make recommendations as to what items you may have overlooked. They may need to stock up on certain materials so you don’t have to wait to have them shipped in (and overnighted at an additional expense).



They may also have to juggle their schedule around to make sure they have the manpower available during the outage. Are they normally closed on weekends? Will they have a method to call someone in for a quick job? Are they in the middle of other shutdowns or production runs?



worker drilling

production parts being inspected
Photo by Michael Adkins photography





















Some common last minute items:

  • Blinds (slip/paddle, bleeder and orifice)
  • Keys for shafting
  • Shims
  • Tube Plugs
  • Custom Bolts and Nuts (or just odd sized)
  • Non-stock metals (stainless piping or angle, brass bushings)



Benjamin Franklin













By failing to prepare, you are preparing to fail. – Benjamin Franklin



Riggs Machine & Fabricating – Serving industry in KY, OH and WV for over 45 years!

Handwheel Extensions & Ease of Operation

RMF

When a valve handle is not readily accessible, or the distance for proper operation is too great, a Handwheel Extension might be the solution.

Once affixed to the existing valve, workers have quick, ready and safe access to the controls when need arises.





















Shown above, an inaccessible gate valve is below a platform. With a bolt-on Handwheel Extension, a worker on top of the platform now has convenient, safe access within reach and can operate the valve freely (without the need of ladders or rigging).



















Also, by increasing the diameter of the handle on the Handwheel Extension, the valve may be easier to operate than it may have been with its original smaller handle.





















These Handwheel Extensions are custom designed based on the valve size and distance from the valve to the operator’s control location.



















Handwheel Extensions are often galvanized to help withstand the weather, elements and possible corrosion from chemicals in the facility.





















If you have inaccessible valves that require outside rigging to operate or controls that put your employees in dangerous situations, call Riggs for an overview of the benefits that Handwheel Extensions can offer.



Riggs Machine & Fabricating – Serving industry in KY, OH and WV for over 45 years!



Welcome Gregg Nichols to the Riggs Team!

RMF

We’d like to welcome Gregg Nichols to our staff. Gregg has a combined 28 years in Industrial Distribution & Manufacturing Operations and Sales.

Gregg Nichols





















His prior experience includes 5 years with Perfection Rubber (operations manager and sales), 18 years with MSC / Dolin Supply (team leader and outside sales) and 4 years with American producers (outside and industrial sales)

The business segments he previously focused on included:

  • Coal
  • Construction
  • Chemical
  • Manufacturing
  • Petroleum
  • Power Generation
  • Steel Production
Gregg and Brent Inspect a New Platform



















Gregg’s areas of expertise include:

  • Hydraulic Hoses, Tubes and Fittings
  • Metal working – Machining – Hole Making
  • Material Handling (lifting and rigging)
  • Pipes, Valves & Fittings
  • Safety

Gregg has jumped right in and got off to a strong start. His outgoing personality and years of knowledge have been a perfect fit here at Riggs. Call him for a visit to your facility and see why he’s an invaluable asset to our team!

Tapered Tube Plugs – Not as Simple as it Seems

RMF
Tapered Tube Plug















Used during repairs and outages, this simple looking device becomes a necessity. The Tube Plug is hammered or welded into the open section of pipes in boilers and heat exchangers. They plug the end of the pipe to either stop the flow of steam or coolant. If the plug’s seal is not tight the coolant can seep into the material and contaminate it.



Heat Exchanger End *
Heat Exchanger Side *

















What makes this seemingly basic item so important are a few factors. First, its fit must be right. Sure they are tapered, but they must fit without damaging the existing pipe or sliding too far in. Also, the material specifications for Tube Plugs can vary greatly. While some plugs can be made out a carbon steel like 1018, other plugs must match the existing pipe section (i.e. A350 with more carbon content) or even stainless steel, nickle or other metals. If the wrong type of metal is used, it could lead to corrosion, rust, leaks or a possible reaction with existing materials in the system.



Tube Plug in CNC Lathe

















Even the machining isn’t always as simple as it may seem. Bar stock in not always available in a size close to what the job requires or the material type needed is only available as plate. In that case, a plug larger than the finished size would be cut from the plate and then turned turn by hand on a lathe. Time consuming, yes, but necessary for a professional fit.



Plug cut from plate
Sample Heat Doc





















At Riggs Machine & Fabricating, we not only have the experience, but we ask the questions to make sure the job is done right, the first time. Don’t trust those supposed simple jobs to just any shop. Call Riggs first for the dependability and quality your facility demands.



Set of Tube Plugs















*(Morton, John, 2 Electrolyte Heat Exchanger Tube Bundles in the 8×6 Foot Wind Tunnel, 1975) – http://catalog.archives.gov



Riggs Machine & Fabricating – Serving industry in KY, OH and WV for over 45 years!

Screw Conveyor – Auger

RMF

The Auger Conveyor uses a rotating helical screw blade to move materials along its length. This unit moves abrasive materials from hopper to hopper then to bagging.

















Notice how the abrasive material has worn down the blades. Also, material is sticking to the untreated blades. Material slides over the smaller, worn out blades making the conveyor ineffective. Jobs take longer and costs rise quickly.





This new unit has Hardfacing Wire (Lincore 55) welded to the blades to reinforce them and add durability. This surface resists sliding wear and mild abrasion. These new blades will have a longer service life.



Industrial Classroom Training Aids

RMF

If you ever wondered where the custom training equipment in industrial classrooms come from, then look no further than Riggs Machine.

















At Riggs we can create custom pieces from scratch, like this “oil flinger” demonstration unit. Shown from conception, with 3D renders, to the final unit in the classroom.

3D Oil Render Test
Oil Flinger 3D Render

















And we also often disassemble, create “cut-away” sections, sandblast, paint and reassemble actual pieces of equipment to be used in working classrooms. These units are used for hands-on training before students hit the field. Much better than a video or book based lecture.

FinTube Assembly – Ready for Class
Custom Cut-Aways





















Some of these jobs can be more time and labor intensive than actual repairs! But we don’t mind. We’re proud to be part of the team who help educate the next generation who will be keeping our refineries, steel mills and factories running.

Pump Cut Away in Process
Pump Lid – Painting Detail















Riggs Machine & Fabricating – Serving industry in KY, OH and WV for over 45 years!

The Target Blind – Revisited

RMF

Blinds, sometimes known as blanks, isolate a section of pipe for repair, maintenance or testing. There are many types of blinds as we have shown before from the slip blind, the spectacle blind to the bleeder blind.

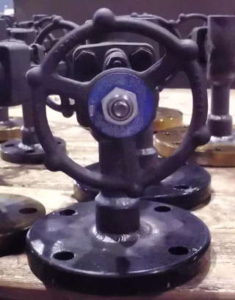

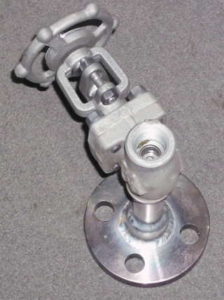

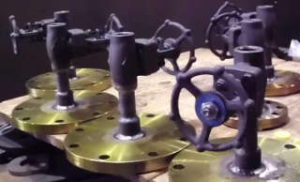

Here we have a nice assortment of Target Blinds. Used much like the bleeder blind, the target blind is placed on the end of a pipe section rather than in the center of a section. Gauges can be placed on the valves to test the pressure in the section of piping. Sampling can also be taken from the valve if desired.

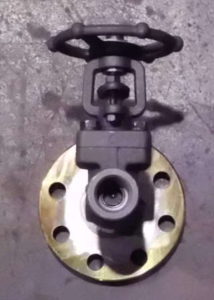

The different sizes correspond with the different sizes of piping found within the refinery.

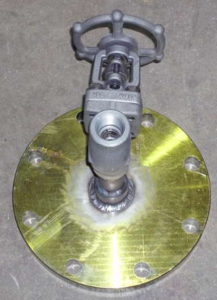

This group of target blinds is a bit “beefier” than usual. They will be used during the permanent shutdown of a unit until the demolition of the unit occurs. There may be need for occasional venting of the piping section until the demo.



















Riggs Machine & Fabricating – Serving industry in KY, OH and WV for over 45 years!
